COMPRESSOR PUMP

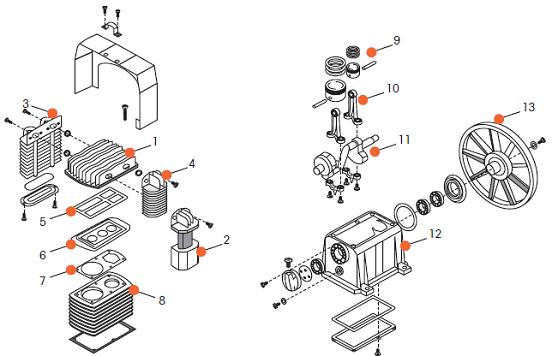

DRAWING REFERENCE DESCRIPTION

1 - Head
2 - Air Filter
3 - Intercooler
4 - After Cooler
5 - Head Gasket
6 - Valve Plate Assembly
7 - Cylinder Gasket
8 - Cylinder
9 - Piston Assemblies
10 - Con Rods
11 - Crank Shaft
12 - Crank Case
13 - Fly Wheel
